| 主要技术特性 TECHNICAL CHARACTERISTICS |
|
|
|
|
|
| 温度范围 Temp.range -65～+165°C (PE Cable) |
|
|
|
|
| 振 动 Vibration MIL-STD-202, Method 213 |
|
|
|
|
| 特性阻抗 Impedance 50Ω |
|
|
|
|
|
|
| 频率范围 Frequency Range DC～11GHz |
|
|
|
|
|
|
| 工作电压 Working Voltage 1000V max (有效值) |
|
|
|
|
|
| 耐 压 Withstand Voltage 2500V rms (海平面最小值) |
|
|
|
|
| 接触电阻 Contact resistance |
|
|
|
|
|
|
|
|
| 内导体之间 Center Contact ≤ 1 mΩ |
|
|
|
|
|
|
| 外导体之间 Outer Contact ≤ 1 mΩ |
|
|
|
|
|
|
| 绝缘电阻 Insulation resistance ≥ 5000 MΩ |
|
|
|
|
|
|
| 电压驻波比 VSWR 直式 Straight ≤ 1.15 |
|
|
|
|
|
|
| 弯式 Right angle ≤ 1.25 |
|
|
|
|
|
| 耐用性 Durability(mating) ≥500次（cycles） |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 材料与涂覆 MATERIAL & PLATING |
|
|
|
|
|
|
|
| 壳体 shell 黄铜 brass 镀亮镍 nickel plated |
| 插针 contact pin 黄铜 brass 镀硬金 gold plated |
|
| 弹性接触件elastic contact铍青铜 beryllium 镀硬金 gold plated |
|
|
| 插孔 socket 铍青铜或锡青铜beryllium or tin brass 镀硬金 gold plated |
|
|
|
| 绝缘体 insulator 聚四氟乙烯 PTFE |
|
|
|
|
|
|
| 压接套 crimping suite 铜合金 copper alloy 镀镍或镀金 nickel or gold plated |
|
|
| o型密封件o-ring sealing 硅橡胶 6146 silastic |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 适用技术标准 APPLICABLE STANDARD |
|
|
|
|
|
|
| MIL-C-39012; |
|
|
|
|
|
|
|
|
|
| CECC 22210; |
|
|
|
|
|
|
|
|
|
|
| IEC 60169-16. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
产品关键词：
N连接器,N型连接器,N型射频连接器,N型同轴连接器,N型插座插头,

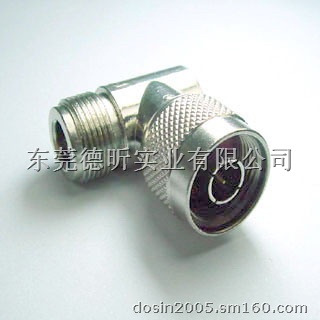

![N-L型射频同轴连接器，N-JKL连接器]()
