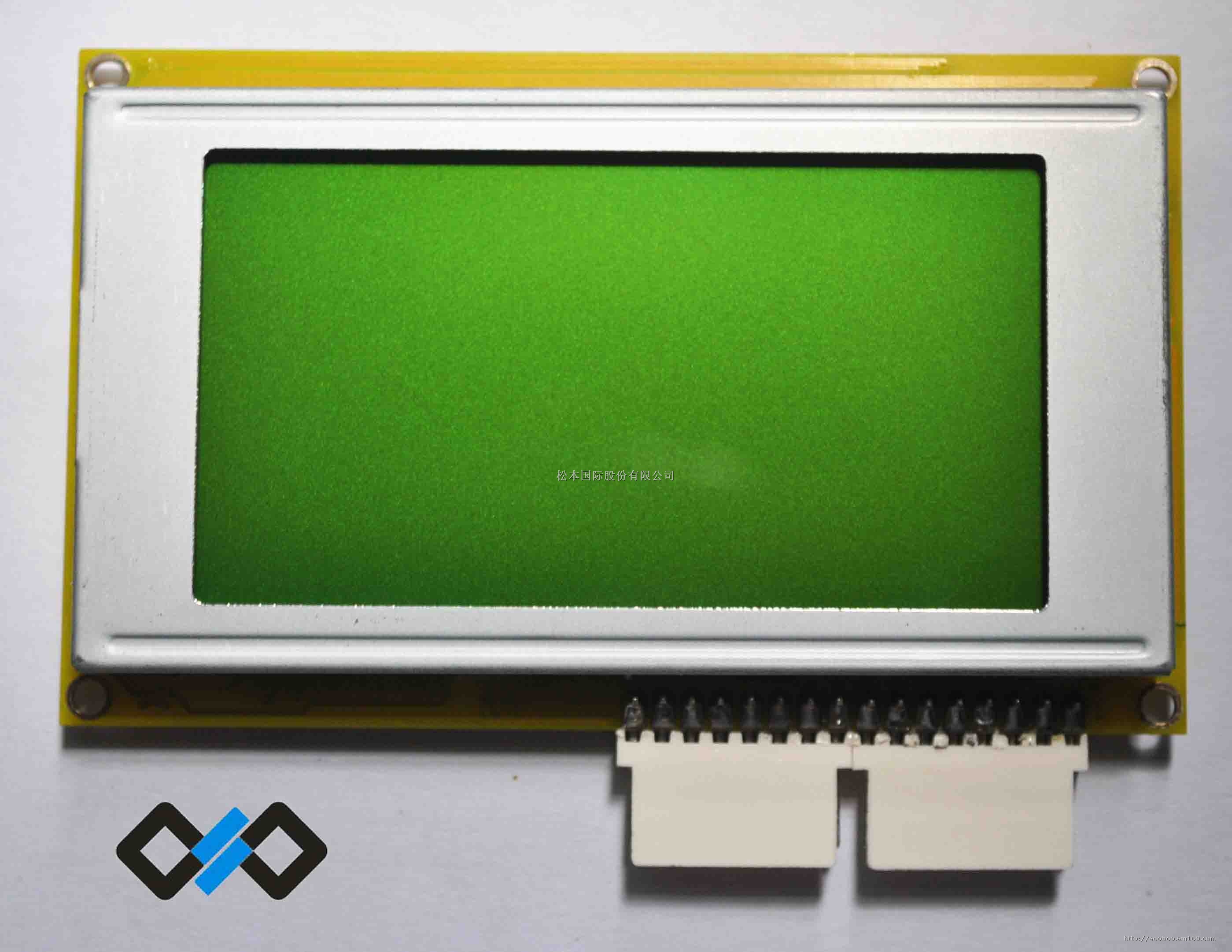

LMG-SSC12K64DLYY/12864中文液晶模块（繁体、简体）
一、产品详细参数：
产品型号：SSC12K64DLYY
显示模式：中文显示
字 符 数：128×64
外形尺寸：98.0×60.0×14.0mm
视窗尺寸：72.0×39.0mm
显示特征：8CH×4Line
控 制 IC：Z80+MC6800+HMCS43C+HD6805【ST7920】
背光类型：LED二极管背光源
驱动参数：1/32Duty
工作温度：-10℃~60℃
工作电压：5V
产品说明：
■现货支持各种颜色背光
■支持STN黄绿膜，蓝膜，灰膜，FSTN等
■支持常温,宽温等
二、外形尺寸图
1、主要外形尺寸：
|
项目 |
标准尺寸 |
单位 |
|
模块体积 |
98.0*60.0*14.0T |
MM |
|
视窗尺寸 |
72.6*33.0 |
MM |
|
字符数 |
128*64 |
DOTS |
|
点间距 |
0.4*0.4 |
MM |
|
点大小 |
0.48*0.48 |
MM |
2、引脚定义：
|
引脚号 |
符号 |
符号 |
符号 |
|
1 |
VSS |
0V |
GND |
|
2 |
VDD |
+ 5.0V |
Power supply for logic |
|
3 |
NC |
— |
Operating voltage for LCD |
|
4 |
RS |
H/L |
H:Data L:Instruction code |
|
5 |
W /R |
H/L |
H:Read L:Write |
|
6 |
E |
H,H—>L |
Enable signal |
|
7 |
DB0 |
H/L |
In 8-bits bus mode,used as low order bidirectional date bus. In 4-bit bus mode,Open these pins. |
|
8 |
DB1 |
H/L |
In 8-bits bus mode,used as low order bidirectional date bus. In 4-bit bus mode,Open these pins. |
|
9 |
DB2 |
H/L |
In 8-bits bus mode,used as low order bidirectional date bus. In 4-bit bus mode,Open these pins. |
|
10 |
DB3 |
H/L |
In 8-bits bus mode,used as low order bidirectional date bus. In 4-bit bus mode,Open these pins. |
|
11 |
DB4 |
H/L |
In 8-bits bus mode,used as low order bidirectional date bus. In 4-bit bus mode,used as both high and order data bus. |
|
12 |
DB5 |
H/L |
In 8-bits bus mode,used as low order bidirectional date bus. In 4-bit bus mode,used as both high and order data bus. |
|
13 |
DB6 |
H/L |
In 8-bits bus mode,used as low order bidirectional date bus. In 4-bit bus mode,used as both high and order data bus. |
|
14 |
DB7 |
H/L |
In 8-bits bus mode,used as low order bidirectional date bus. In 4-bit bus mode,used as both high and order data bus. |
|
15 |
LED A |
+5V |
Power supply for LED backlight |
|
16 |
LCD K |
0V |
Power supply for LED backlight |
