单组份，导热系数25W/mK，适合3-5W大功率LED和模组。自动点胶机适用。

Introduction

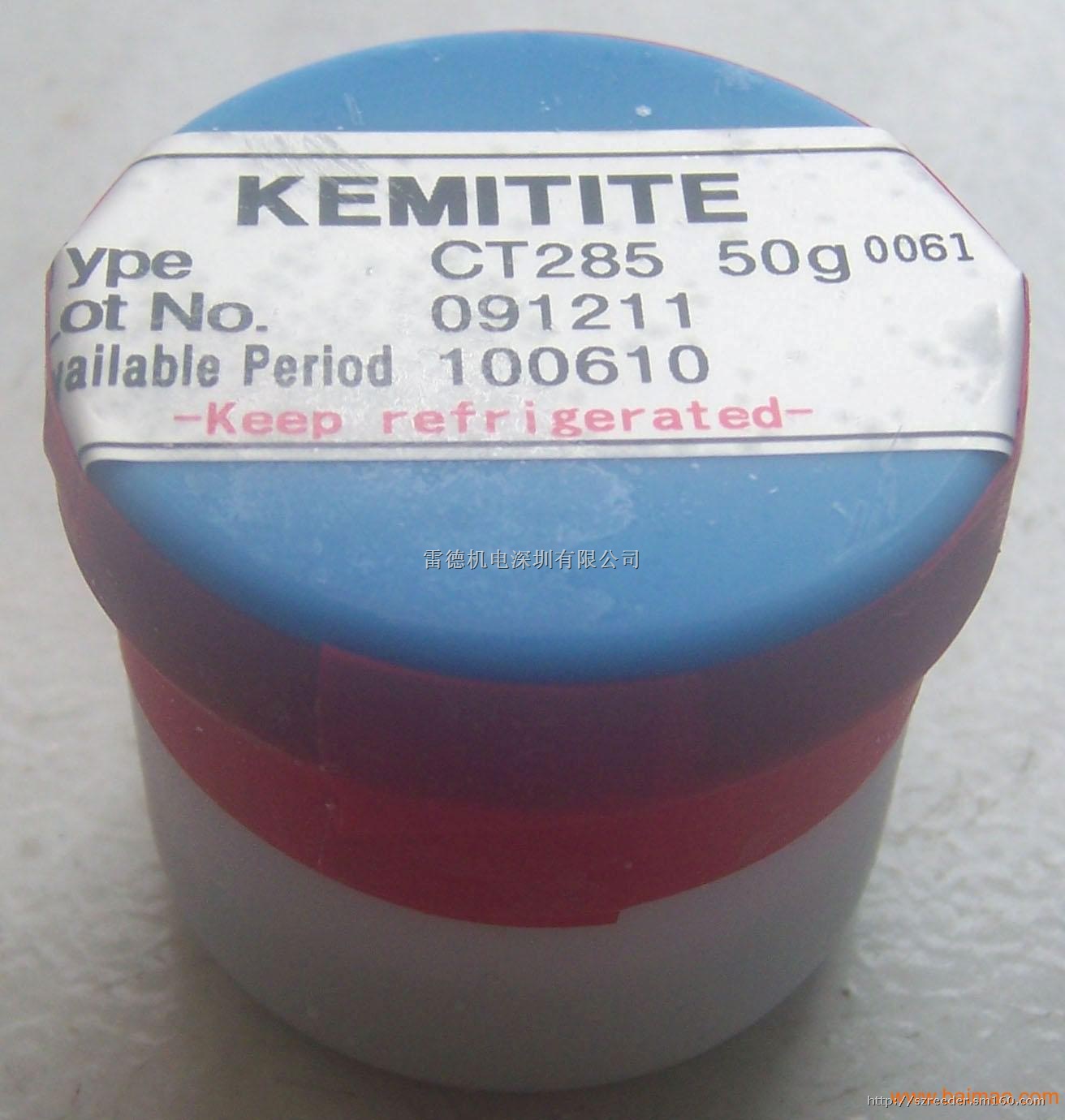

   Die Attach Paste  ”KEMITITE CT285” is epoxy resin based and solvent free Type paste.

   The highest thermal conductivity (25W/mK)

   Good reflow performance due lower moisture absorption resin system.

   CT285 is effectively used for power IC, transistor.

Features
1） Good workability for dispensing due to solvent free and one liquid type paste.

2） Highest thermal conductivity(25W/mK)

3） Bleed less.

General Property
Properties
 Unit
 Typical Value
 Test Method

Appearance
 –
 Silver Filled Paste
 Visual

Viscosity at 25CPa·s100EHD Viscometer 0.5rpm3°cone)

Thixotropic Index
 –6.0 0.5rpm/2.5rpm

Non Voletile
 Wt%92.0 180C×2hr

Silver Content
 Wt%87.5 600C×3hr

Adhesive Strength
 25c300CN3020
 Frame: Cu/PPF

Chip Size: 2×2mm

Volume Resistivity
 Ohm.cm
 8×10-6
 Cure: 200C×90min

Measurement: Room Temp

Glass Transition Temperature
 C200TMA

Modulus(25C)
 25CGPa16.5DMA
 260C 7.8

CTE
 Alpha 1Ppm75TMA
 Alpha 2
 200

Ionic Impurity
 Nappm61
 Atomic Absorption
Ionchromatography
 CIThermal Conductivity
 W/m K25
 Laser Flash
4.  Standard Cure Condition
175C×60-90min

5. Remarks
Storage condition is _30 to _15C 6 month
