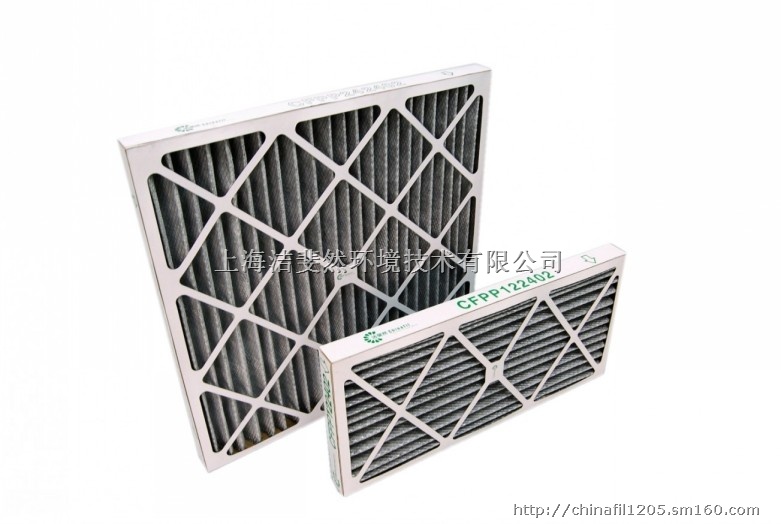

Pleated Active Carbon Paper Panel Filter，Class G4
纸框折褶板式活性炭过滤器
Advantages 特点：
? Compact 2 in 1 solution
2合1解决方案
? Double action: particleand odour filtration
双重功效：针对灰尘和气味
? Can be used to upgradeexisting system
可以直接用于升级现有的配置系统
Application: Highefficiency for particle filtration and controling the gas pollution at the sametime.Very popular in MAU, at airports,museum, office, etc.
应用：高效率过滤粉尘的同时去除异味和气体污染，如：办公环境、机场等
Specification 性能参数
Type: Prefilter forgas and particles removal.
类型：气体及灰尘过滤器
Media: Synthetic fibreand broad spectrum carbon.
滤材：渗碳型化学纤维滤材
Frame: Rigid waterresistant cardboard.
外框材质：耐高湿防水纸板外框
EN779:2011 filterclass:G4(EN779), EA≥90% @Arrestance efficiency
过滤效率等级：G4(EN779),EA≥90% @计重效率
Recommended finalpressure drop: 250
建议终阻力：250Pa
Temperature: 0 - 40oC.
连续稳定运行温度：0- 40oC.
| Thickness vs Efficiency vs Pressrue drop | | | ||
| 厚度/效率/阻力-对应关系表 | | | ||
| Thickness | 初阻力Pressure drop | Ozone removal | ||
| 厚度 | ||||
| (Inches) | (mm) | G4 | | |
| 2 | 45 | 75 | 50% | |
| 4 | 96 | 90 | 70% | |
| Dimensions vs Air flow | | | | ||
| 长&宽尺寸/风量-对应关系表 | | ||||
| Dimensions (H x W) | Air Flow | ||||
| (Inches) | (mm) | m3/Hr @2.5m/s | |||
| 24×24 | 592×592 | 3400 | |||
| 24×12 | 592×287 | 1700 | |||
| 24×20 | 592×490 | 2810 | |||
| 20×20 | 490×490 | 2325 | |||
| | | | | | |
| | | | | | |
| | | Note： | Pressure drop +/-15% | ||
| | | | Odd sizes available | | |
| | | 注： | 阻力 +/-15% | | |
| | | | 可定制任意非标尺寸 | | |
