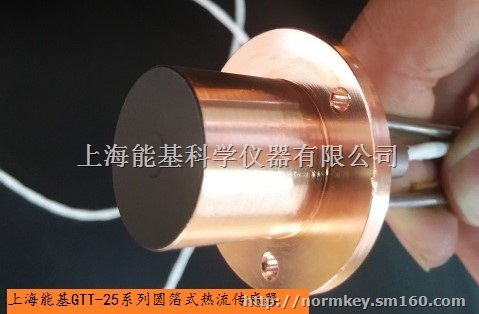

100Kw/m2圆箔式热流传感器GTT-25-100采用经典的圆箔式结构，测试稳定，圆箔式戈登热流传感器体温度不影响测试灵敏度。圆箔式热流传感器由Robert Gardon发明，上海能基提供成型的产品并可以提供不同尺寸传感器。主要用于防火研究，消防研究

航天和航空材料研究。

100Kw/m2圆箔式热流传感器GTT-25-100的技术参数：

热流范围：0-50kw/m2

热流精度：±3%

100Kw/m2圆箔式热流传感器GTT-25-100采用圆箔式（Circular Foil type）具有非常好的线性，其测试不受传感器体温度影响，在204°内保持优良的测试稳定性。

100Kw/m2圆箔式热流传感器GTT-25-100采用水冷降温方式，确保了传感器工作的可靠性，传感器可以长时间工作。

上海能基有更多不同量程的圆箔式戈登热流传感器供选择，安装方式及尺寸可以定制。

The Circular Foil type heat flux sensor has standard ranges 50kw/m2. Heat flux is absorbed at the sensor surface and is transferred to an integral heat sink that remains at a different temperature than the sensor surface.

The difference in temperature between two selected points along the path of the heat flow from the sensor to the sink is a function of the heat being transferred, and a function of the  absorbed heat flux.

At two such points, The Circular Foil type heat flux sensor have thermocouples or thermopiles to form a differential thermoelectric circuit, thus providing a self-generated emf at the output leads that is directly proportional

to the heat transfer rate. No power supply or thermoelectric reference junction is needed.
