低损耗稳相电缆
SFB220A可替代Gore CXN3506 及Micro-CoaxUFB088D
良好的机械相稳定性
良好的温度相位稳定性
极低的损耗
良好的振幅稳定性
良好的屏蔽性能
良好的弯曲性能
良好的功率处理能力
应用范围：
军车，电子战车，雷达设备，舰载系统，机载平台，系统互连，卫星，消融设备

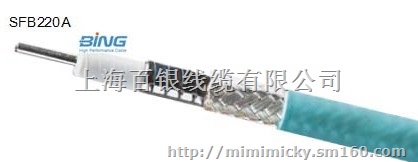

SFB220A, Ultra Low Loss Microwave Coaxial Cable 2.20mm Outer Diameter | |||
Cable Design | |||
Inner Conductor | 0.53mm | Solid Silver Plated Copper | |
Dielectric | 1.52mm | Ultra Low Density PTFE Tape | |
Outer Conductor | Silver Plated Copper Tape | ||
1.90mm | Silver Plated Copper Braid | ||
Jacket | 2.20mm | Extruded FEP | |
Electrical Cable Characteristic | |||
Impedance | 50 Ohm | ||
Cutoff Frequency | 61 GHz | ||
Capacitance | 81 pF/m | ||
Velocity of Propagation | 82% | ||
Max. Operating Volatage | 5000 VRMS | ||
Shielding Effectiveness | >100dB @ 1 GHz | ||
Mechanical Cable Characteristic | |||
Temperature Range | -55 ~ +200 ℃ | ||
Min. Static Bend Radius - | 9 mm | ||
Min. DynamicBend Radius | 38 | ||
Weight | 19 g/m | ||
RoHS Compliant | Yes | ||
Cable Attenuation & Power | |||
Frequency (GHz) | Attenuation(dB/m) | Power ( W) | |
0.300 | 0.346 | 180 | |
0.500 | 0.448 | 140 | |
1.000 | 0.637 | 97 | |
3.000 | 1.119 | 55 | |
5.000 | 1.658 | 42 | |
6.000 | 1.760 | 39 | |
8.000 | 1.865 | 33 | |
10.000 | 2.098 | 29 | |
12.400 | 2.352 | 26 | |
18.000 | 2.871 | 22 | |
26.500 | 4.408 | 18 | |
35.000 | 5.245 | 15 | |
40.000 | 5.708 | 14 | |
