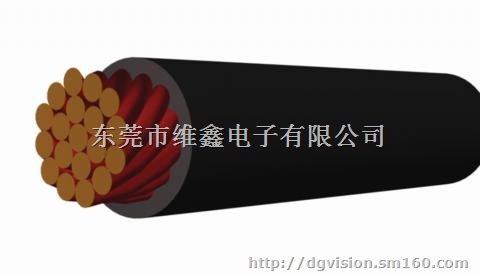

商品名称：Rubadue ETFE单层绝缘多股线
自定义分类：Rubadue多股绝缘线
上架时间：2023/10/23 16:48

如果您发现商品信息不准确，欢迎纠错

产品关键词： 单层绝缘多股线,

BASIC (1 LAYER), LITZ WIRE, DUPONT? TEFZEL? ETFE INSULATION, SINGLE INSULATED WIRE

Product Information

Temperature Rating:

155°C

Wire Category:

Litz

Insulation:

DuPont? Tefzel? ETFE

Compliances:

RoHS Compliant

UL OBJT2 File No. E206198

UL/IEC 60950-1 (Ed. 2), am1 Annex U.

IEC 61558-2-16

VDE License Nr. 136743: Class F

Voltage Rating:

UL: 600V

VDE: 1000V

UL 1446 Electrical System Approvals:

RXT-2 Class F

Insulation Information

Insulation Type:

Fluoropolymer

Thermal:

Continuous Operating Temperature, 150°C

UL Flammability Rating:

V-0

Dielectric Constant:

2.6

Tensile Strength (psi):

6500

Elongation(%):

150-300

Abrasion Resistance:

Excellent

Bondability:

Poor

UV Resistance:

Excellent

Chemical Resistance:

Excellent

Water Resistance:

Excellent

Underground Resistance:

Excellent

Long Term Stability:

Excellent

Bare Core Wire Specifications: POLY-NYLON (Class 155) (MW-80C) The litz core wire consists of nylon enamel film over a polyurethane enamel base coat. The nylon improves cut through temperature, windability, resistence to abrasion, and resistance to chemicals and solvents without a change to the soldering properties. Because of these properties, this insulation is preferred on 30awg and larger when a solderable film is required.

Conductor:

Litz, 825 strands of 44 AWG, MW-80

Litz, 120 strands of 38 AWG, MW-80

Litz, 550 strands of 44 AWG, MW-80

Litz, 100 strands of 38 AWG, MW-80

Litz, 7 strands of 28 AWG, MW-80

Litz, 66 strands of 38 AWG, MW-80

Litz, 360 strands of 44 AWG, MW-80

Litz, 20 strands of 34 AWG, MW-80

Litz, 7 strands of 30 AWG, MW-80

Litz, 19 strands of 36 AWG, MW-80

Litz, 7 strands of 32 AWG, MW-80

Litz, 40 strands of 40 AWG, MW-80

Litz, 230 strands of 44 AWG, MW-80

ETFE is a Fluoropolymer compound with excellent electrical properties, heat resistance, chemical resistance, and abrasion resistance. Commonly used in winding wires, UL AWM wires, and medical applications.

INSULATED WIRE INFORMATION:

Part Number	Equiv. AWG	Core O.D. (in)	Circular Mils.	No. Strands	AWG of Strands	Nominal O.D. (in)	Suggested Operating Frequency
SXXL825/44TX-3(MWXX)	11	0.0844	3300	825	44	0.0904	400 - 850 khz
SXXL120/38TX-2(MWXX)	15	0.0567	1920	120	38	0.0607	50 - 100 khz
SXXL120/38TX-3(MWXX)	15	0.0567	1920	120	38	0.0627	50 - 100 khz
SXXL550/44TX-2(MWXX)	13	0.0689	2200	550	44	0.0729	400 - 850 khz
SXXL550/44TX-3(MWXX)	13	0.0689	2200	550	44	0.0749	400 - 850 khz
SXXL100/38TX-2(MWXX)	16	0.0518	1600	100	38	0.0558	50 - 100 khz
SXXL100/38TX-3(MWXX)	16	0.0518	1600	100	38	0.0578	50 - 100 khz
SXXL07/28TX-2(MWXX)	18	0.0413	1110	7	28	0.0453	60 hz - 1 khz
SXXL07/28TX-3(MWXX)	18	0.0413	1110	7	28	0.0473	60 hz - 1 khz
SXXL66/38TX-2(MWXX)	18	0.0420	1056	66	38	0.0460	50 - 100 khz
SXXL66/38TX-3(MWXX)	18	0.0420	1056	66	38	0.0480	50 - 100 khz
SXXL360/44TX-2(MWXX)	15	0.0557	1440	360	44	0.0597	400 - 850 khz
SXXL360/44TX-3(MWXX)	15	0.0557	1440	360	44	0.0617	400 - 850 khz
SXXL20/34TX-2(MWXX)	19	0.0360	794	20	34	0.0400	20 khz
SXXL20/34TX-3(MWXX)	19	0.0360	794	20	34	0.0420	20 khz
SXXL07/30TX-2(MWXX)	20	0.0331	700	7	30	0.0371	1 - 10 khz
SXXL07/30TX-3(MWXX)	20	0.0331	700	7	30	0.0391	1 - 10 khz
SXXL19/36TX-2(MWXX)	21.5	0.0281	475	19	36	0.0321	20 - 50 khz
SXXL19/36TX-3(MWXX)	21.5	0.0281	475	19	36	0.0341	20 - 50 khz
SXXL07/32TX-2(MWXX)	21.5	0.0267	448	7	32	0.0307	10 khz
SXXL07/32TX-3(MWXX)	21.5	0.0267	448	7	32	0.0327	10 khz
SXXL40/40TX-2(MWXX)	22	0.0254	385	40	40	0.0294	100 - 200 khz
SXXL230/44TX-2(MWXX)	17	0.0445	920	230	44	0.0485	400 - 850 khz
SXXL230/44TX-3(MWXX)	17	0.0445	920	230	44	0.0505	400 - 850 khz
