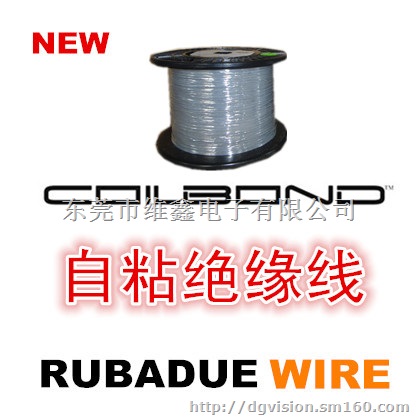

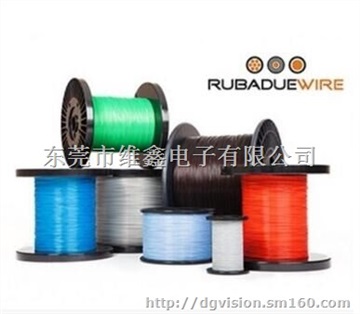

商品名称：Rubadue DXXA01TXX-1自粘绝缘线
自定义分类：Rubadue自粘绝缘线
上架时间：2023/10/23 16:48

如果您发现商品信息不准确，欢迎纠错

产品关键词： 自粘绝缘线,

SUPPLEMENTARY (2 LAYER), DUPONT? TEFZEL? ETFE INSULATION, .001" / LAYER WITH .0015" SELF-BONDING OVERCOAT

Product Information

Temperature Rating:

155°C

Wire Category:

CoilBond?

Insulation:

DuPont? Tefzel? ETFE with Self-Bonding Overcoat

Size Range:

30 AWG - 40 AWG

Compliances:

RoHS Compliant

UL 60950-1 (Ed.2), Annex U

UL OBJT2 File No. E206198

Voltage Rating:

600 V

Breakdown:

Approx. 3000 V

OD Tolerances:

30-40 AWG: +0.001" / -0.0005"

Insulation Information

Insulation Type:

Fluoropolymer

Thermal:

Continuous Operating Temperature, 150°C

UL Flammability Rating:

V-0

Dielectric Constant:

2.6

Tensile Strength (psi):

6500

Elongation(%):

150-300

Abrasion Resistance:

Excellent

Bondability:

Excellent

UV Resistance:

Excellent

Chemical Resistance:

Excellent

Water Resistance:

Excellent

Underground Resistance:

Excellent

Long Term Stability:

Excellent

BARE CORE WIRE SPECIFICATIONS:

AWG	Min. Dia.	Nom. Dia.	Max. Dia.	Min. Res.*	Nom. Res.	Max. Res.
30	0.0099	0.0100	0.0103	1.0009	1.0785	1.1359
31	0.0088	0.0089	0.0092	1.2546	1.3616	1.4376
32	0.0079	0.0080	0.0083	1.5414	1.6852	1.7838
33	0.0070	0.0071	0.0074	1.9392	2.1395	2.2720
34	0.0062	0.0063	0.0066	2.4378	2.7173	2.8962
35	0.0055	0.0056	0.0059	3.0506	3.4391	3.6803
36	0.0049	0.0050	0.0053	3.7803	4.3140	4.6368
37	0.0044	0.0045	0.0048	4.6089	5.3259	5.7505
38	0.0039	0.0040	0.0043	5.7431	6.7406	7.3195
39	0.0034	0.0035	0.0038	7.3539	8.8041	9.6306
40	0.0030	0.0031	0.0034	9.1860	11.2227	12.3700

*ASTM B33 sets no standard for minimum resistance. This is only an indicator to investigate other aspects such as tin-thickness and tin coverage.

Conductor:

Tin Plated Copper, Solid or Stranded (ASTM B-33/ASTM B-286)

Bare Copper and other conductors available

ETFE is a Fluoropolymer compound with excellent electrical properties, heat resistance, chemical resistance, and abrasion resistance. Commonly used in winding wires, UL AWM wires, and medical applications Self-Bonding Overcoat Information: The Self-Bonding Overcoat is a proprietary material intended for bonding the product together and it should not be considered an additional layer of insulation nor should it be used for any additional electrical or mechanical properties

INSULATED WIRE INFORMATION:

Part Number	AWG	Inches	MM	Inches	MM
D30A01TXX-1-SB-1.5	30	0.010	0.254	0.017	0.430
D31A01TXX-1-SB-1.5	31	0.009	0.226	0.016	0.400
D32A01TXX-1-SB-1.5	32	0.008	0.203	0.015	0.380
D33A01TXX-1-SB-1.5	33	0.007	0.180	0.014	0.360
D34A01TXX-1-SB-1.5	34	0.006	0.160	0.013	0.340
D35A01TXX-1-SB-1.5	35	0.006	0.142	0.013	0.320
D36A01TXX-1-SB-1.5	36	0.005	0.127	0.012	0.300
D37A01TXX-1-SB-1.5	37	0.005	0.114	0.012	0.290
D38A01TXX-1-SB-1.5	38	0.004	0.102	0.011	0.280
D39A01TXX-1-SB-1.5	39	0.004	0.089	0.011	0.270
D40A01TXX-1-SB-1.5	40	0.003	0.079	0.010	0.260
