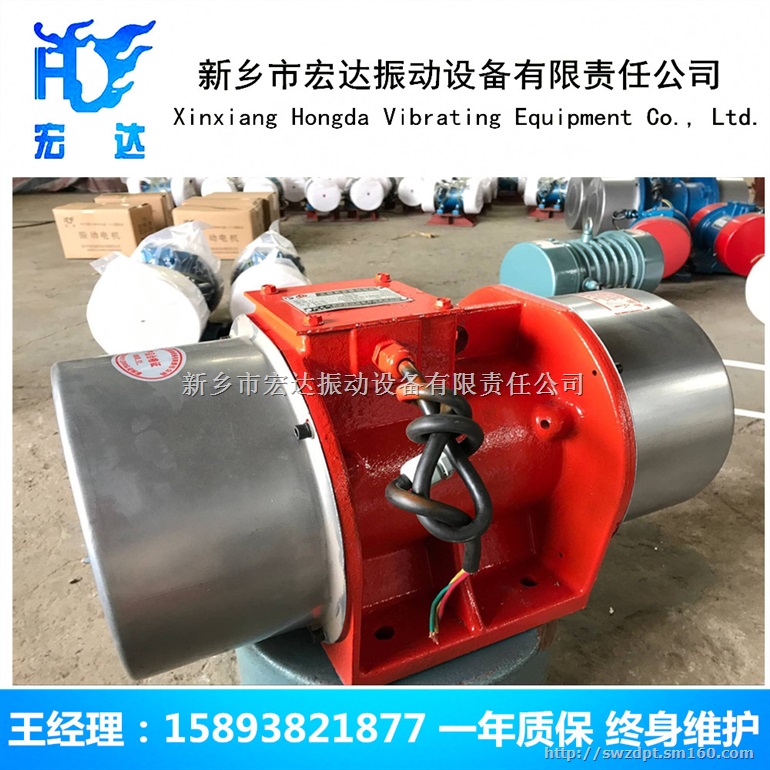

MVE2400/15振动电机
MVE振动电机相关技术参数：
额定电压： 380V(三相)220V（单相）（也可提供230/400V，230/460V）
直流电压： 12V 24V 220V
额定频率： 50HZ（也可提供60HZ）
绝缘等级： F级
防护等级： IP55
工作制： 连续（S1）
激振力调整范围： 0—最大额定
激振力： 单相 0—800kg
型号 | 激振力 | 振次 | 功率 | 电流 | 安装尺寸 | ||
KN | r/min | KW | A | A | B | Φg | |
MVE60/3 | 0.7 | 2900 | 0.07 | 0.16 | 62-74 | 106 | Φ9 |
MVE100/3 | 1 | 0.09 | 0.19 | 62-74 | 106 | Φ9 | |
MVE200/3 | 2 | 0.15 | 0.35 | 62-74 | 106 | Φ9 | |
MVE300/3 | 3 | 0.25 | 0.52 | 90 | 125 | Φ13 | |
MVE400/3 | 4 | 0.27 | 0.58 | 60 | 125 | Φ13 | |
MVE500/3 | 5 | 0.37 | 0.96 | 105 | 140 | Φ13 | |
MVE700/3 | 7 | 0.45 | 1.25 | 105 | 140 | Φ13 | |
MVE800/3 | 8 | 0.55 | 1.45 | 120 | 170 | Φ17 | |
MVE1200/3 | 10 | 0.75 | 1.85 | 120 | 170 | Φ17 | |
MVE1300/3 | 13 | 1.1 | 2.44 | 120 | 170 | Φ17 | |
MVE1600/3 | 16 | 1.25 | 2.94 | 140 | 190 | Φ17 | |
MVE1800/3 | 18 | 1.5 | 3.75 | 140 | 190 | Φ17 | |
MVE2000/3 | 20 | 2 | 4.07 | 140 | 190 | Φ17 | |
MVE2300/3 | 23 | 2 | 4.44 | 140 | 190 | Φ17 | |
MVE3200/3 | 32 | 2.2 | 5.3 | 155 | 255 | Φ25 | |
MVE4000/3 | 40 | 2.7 | 5.3 | 155 | 255 | Φ25 | |
MVE5000/3 | 50 | 3.5 | 7.22 | 155 | 255 | * | |
MVE6500/3 | 65 | 4.2 | 8.2 | 200 | 320 | Φ28 | |
MVE9000/3 | 90 | 7.2 | 17.8 | 200 | 320 | Φ28 | |
MVE40/15 | 0.3 | 1400 | 0.31 | 0.03 | 62-74 | 106 | Φ9 |
MVE90/15 | 0.9 | 0.26 | 0.07 | 62-74 | 106 | Φ9 | |
MVE200/15 | 2 | 0.49 | 0.12 | 90 | 125 | Φ13 | |
MVE250/15 | 2.5 | 0.54 | 0.13 | 90 | 125 | Φ13 | |
MVE300/15 | 3 | 0.62 | 0.14 | 90 | 125 | Φ13 | |
MVE400/15 | 4 | 0.84 | 0.15 | 105 | 140 | Φ13 | |
MVE500/15 | 5 | 1.06 | 0.25 | 105 | 140 | Φ13 | |
MVE700/15 | 7 | 1.32 | 0.37 | 120 | 170 | Φ17 | |
MVE800/15 | 8 | 1.36 | 0.4 | 120 | 170 | Φ17 | |
MVE1100/15 | 11 | 1.42 | 0.4 | 120 | 170 | Φ17 | |
MVE1400/15 | 14 | 1.78 | 0.45 | 140 | 190 | Φ17 | |
MVE1700/15 | 17 | 2.09 | 0.75 | 140 | 190 | Φ17 | |
MVE2400/15 | 24 | 3.2 | 1 | 140 | 190 | Φ17 | |
MVE2500/15 | 25 | 3.4 | 1.2 | 155 | 225 | Φ22 | |
MVE3000/15 | 30 | 3.68 | 1.5 | 155 | 225 | Φ22 | |
MVE3800/15 | 38 | 4.15 | 1.72 | 155 | 255 | Φ25 | |
MVE4300/15 | 43 | 4.5 | 1.94 | 155 | 255 | Φ25 | |
MVE5500/15 | 55 | 6.5 | 2.2 | 180 | 280 | Φ26 | |
MVE7200/15 | 72 | 9.6 | 3 | 200 | 320 | Φ28 | |
MVE9000/15 | 90 | 13.4 | 5.8 | 200 | 320 | Φ28 | |
MVE10000/15 | 100 | 14.4 | 6.3 | 125-125 | 380 | 6-Φ38 | |
MVE50/1 | 0.5 | 960 | 0.12 | 0.38 | 90 | 125 | Φ13 |
MVE100/1 | 1 | 0.12 | 0.42 | 90 | 125 | Φ13 | |
MVE200/1 | 1.8 | 0.15 | 0.48 | 105 | 140 | Φ13 | |
MVE300/1 | 3 | 0.25 | 0.67 | 120 | 170 | Φ17 | |
MVE400/1 | 4 | 0.25 | 0.78 | 120 | 170 | Φ17 | |
MVE500/1 | 5 | 0.37 | 1.22 | 220 | 170 | Φ17 | |
MVE800/1 | 7.8 | 0.45 | 1.26 | 140 | 190 | Φ17 | |
MVE1100/1 | 10 | 0.55 | 1.42 | 140 | 190 | Φ17 | |
MVE1400/1 | 14 | 0.7 | 1.95 | 140 | 190 | Φ17 | |
MVE1500/1 | 15 | 0.7 | 2 | 140 | 190 | Φ17 | |
MVE1600/1 | 16 | 0.75 | 2.06 | 140 | 190 | Φ17 | |
MVE1620/1 | 16 | 0.75 | 2.06 | 155 | 225 | Φ22 | |
MVE2100/1 | 21 | 1.5 | 2.88 | 155 | 255 | Φ22 | |
MVE2600/1 | 26 | 1.96 | 3.63 | 155 | 255 | Φ23.5 | |
MVE3000/1 | 30 | 2.2 | 4.17 | 155 | 255 | Φ23.5 | |
MVE3800/1 | 38 | 2.5 | 4.67 | 180 | 280 | Φ26 | |
MVE4700/1 | 47 | 2.9 | 6.01 | 180 | 280 | Φ26 | |
MVE5200/1 | 52 | 3.2 | 6.92 | 200 | 320 | Φ28 | |
MVE6500/1 | 65 | 3.6 | 7.76 | 200 | 320 | Φ28 | |
MVE8000/1 | 80 | 5.5 | 12.6 | 200 | 320 | Φ28 | |
MVE9000/1 | 90 | 6.2 | 13.2 | 200 | 320 | Φ28 | |
MVE10000/1 | 100 | 7.5 | 14.3 | 125-125 | 380 | 6-Φ38 | |
MVE13000/1 | 130 | 8.3 | 16 | 125-125 | 380 | 6-Φ38 | |
