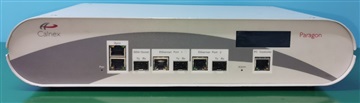

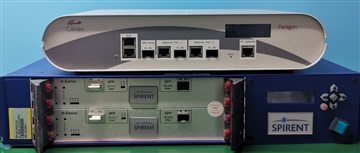

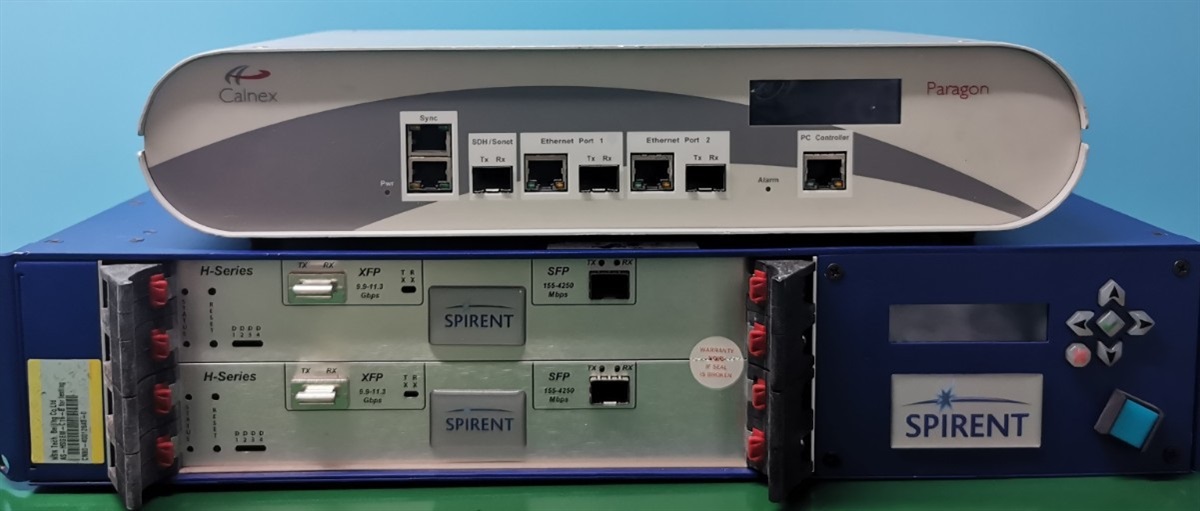

SPIRENT CKL-2U网络损伤模拟器  CALNEX Paragon 网络损伤仪

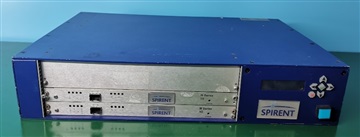

Spirent Anue H Series Hawaii Platform Ethernet Network Emulator with the following:

• Model : CKL-2U

• Software Version: v6.0.2

• Blade 1,2,3 & 4

  • Model : HS-GEMOPC1-B

  • OEM : Spirent




• Blade 1 & 3

  • Current Mode: GEM

  • Current Bitrate: 1G-Fiber (paired)




• GEM system Options on Blade 1 & 3

  • Profiles Enabled: 2

  • Bandwith Control: Enabled

  • Profiler Playback: Enabled

  • Network Playback: Enabled

  • Accumulate & Burst: Enabled

  • Capture Replay: Enabled

  • AvalMemory: Standard

  • Checksum Correction: Enabled

  • Router Mode: Enabled

    • MaxEports: 1

    • MaxErouters: 1







• XGEM system Options on Blade 1 & 3

  • Profiles Enabled: 2




Anue Network Emulators Hawaii Compact PCI Chassis; includes 10/100 Ethernet host communications port, LCD display, and 2 line cards. One pair of ports is active at a time (low or high speed). Supports all software loads up to 11.3 Gbps.

Anue GEM Network Emulator Specifications

• Line rate performance supported from 10Mbps through 10Gbps Ethernet regardless of incoming packet size.

• 10/100/1000 Base-T and optical GE

• Network Profiles support emulating multiple "network clouds" per interface. Emulate different paths through a network or different classes of service

  • Each profile is defined by any combination of VLAN tag, MPLS label, MAC/IP address (IPV4, IPV6), TCP/UDP port or any data up to 2000 bytes within Ethernet frame

  • Define bandwidth, delay and impairments per profile




• 1, 4, 8 or 16 profiles

• Classify up to 2000 bytes deep

• Bit-wise filtering

• Advanced Protocol Filter Suite provides a growing list of filters including PPP, PTP, RSVP, IP, FCoE, FIP, OSPF, MPEG and many others

• Build your own filter libraries for any new standards based or proprietary protocols

• Fixed and random impairment distributions

• Random and filtered or targeted impairments

• Loss of Signal, Loss of Frame Synchronization

• PCS, MAC and higher layer bit errors, CRC

• Impairment distribution: Periodic, Poisson, Uniform or Gaussian

• Packet/Frame Drop

• Reordering – within 255 packets

• Duplicating up to 15 times (255 with XGEM)

• CRC corruption

• Impairment rates: 100% to 3.73e-9

Anue XGEM Network Emulator Specifications

• 10Gig Ethernet with Optical and Copper CX4

• 1 or 4 profiles

• Classify up to 255 bytes deep

• Impairment rates: 5.96e-8

• Checksum correction: FCoE

• Up to 380ms of delay

• RX and TX IPG histogram

• RX frame length histogram
