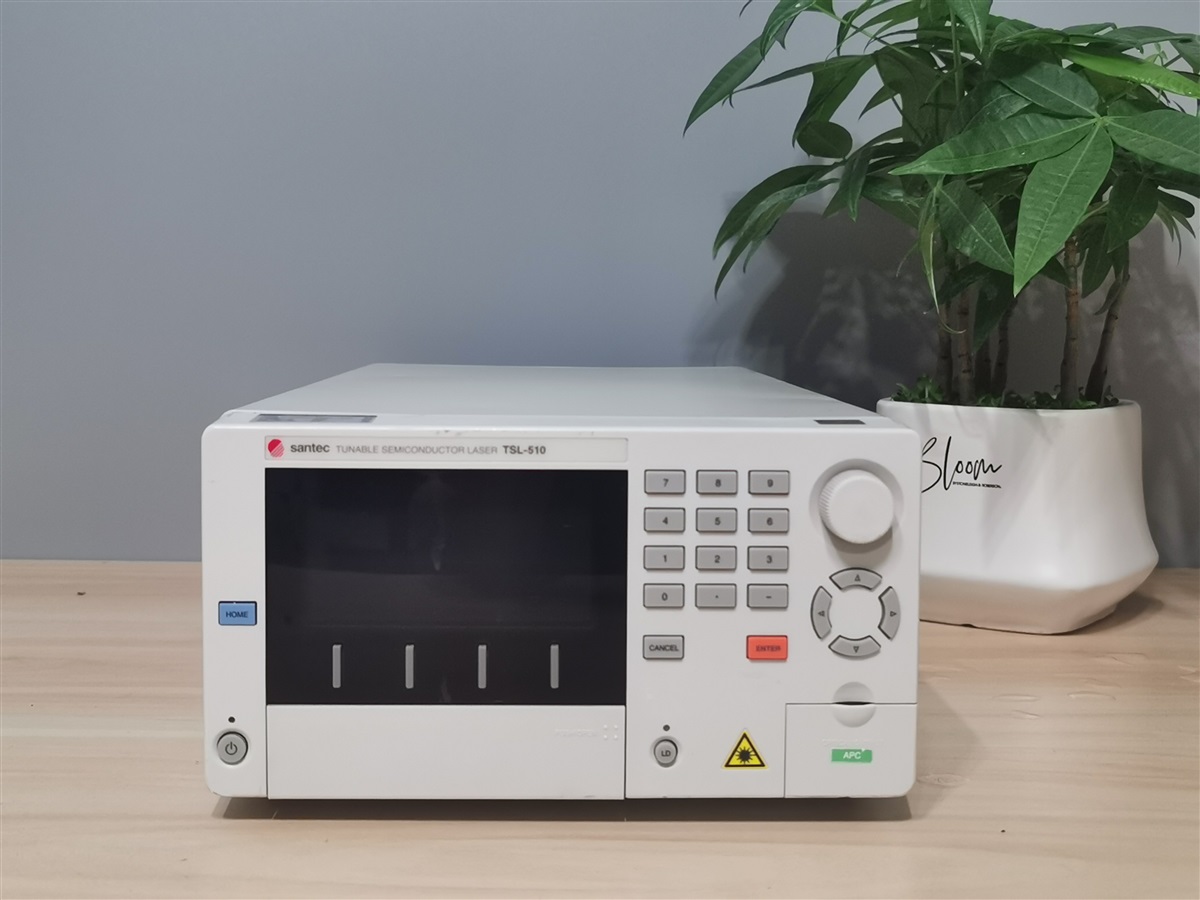

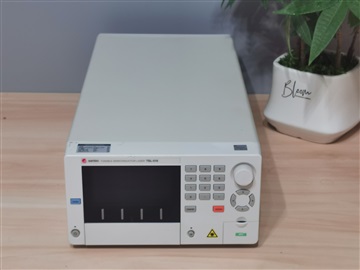

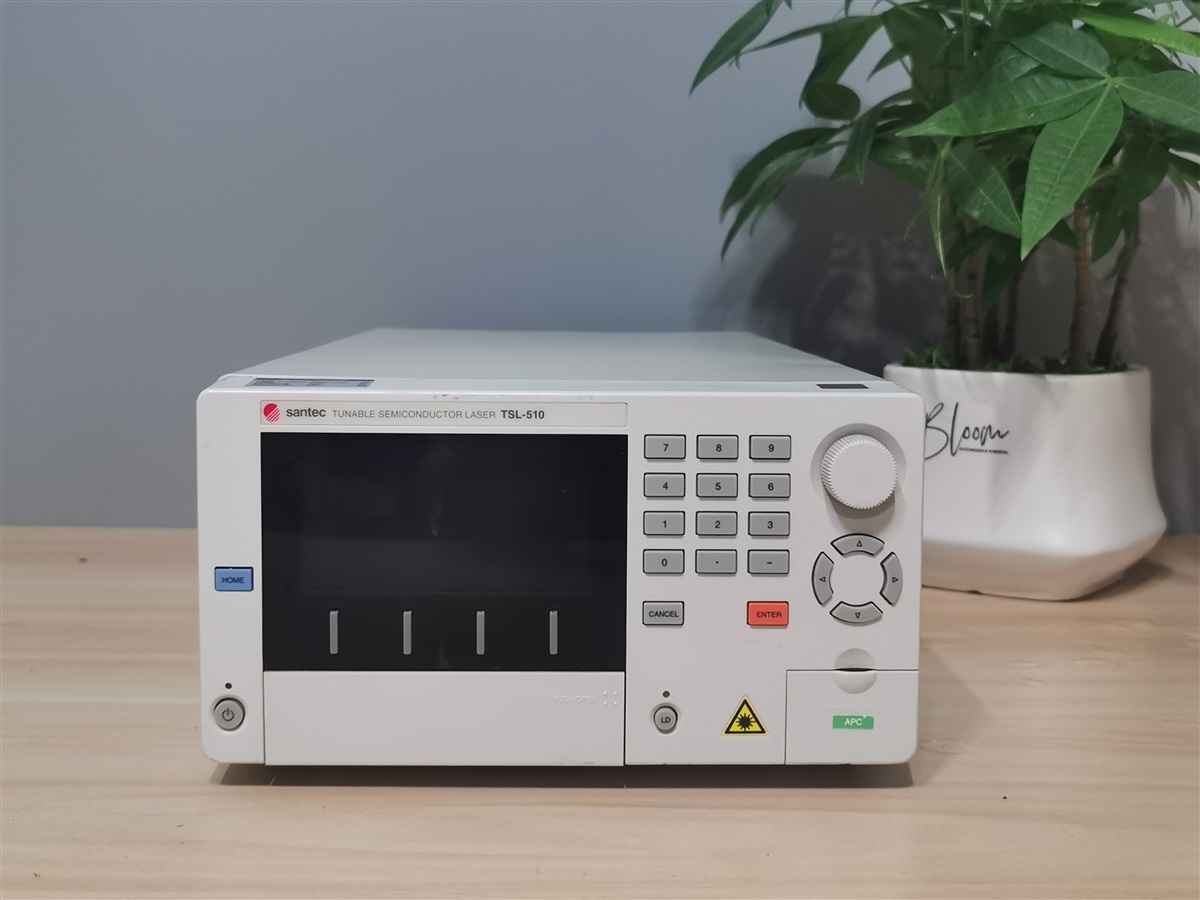

SANTEC高性能可调谐激光器TSL-550
| [可调波长范围] | 1260-1360/1500-1630nm |
| [波长分辨率] | 5pm or 1pm |
| [波长稳定度] | ≤±5pm or ≤±1pm |
| [输出功率] | ≥+13(Peak);≥+10(Full range) |
| [功率稳定度] | ±0.01dB |
一款高性能可调谐激光器,拥有宽调谐范围,高功率及高信噪比输出. 无跳模调谐的TSL-550具有细调谐和相干控制的特性, 使得它成为精密光学测量的必备工具. SANTEC采用了创新的腔体设计以降低光的自发辐射噪声, 这样能获得超过90dB/0.1nm的优异信噪比, 并且同时可维持超过+10dBm的输出功率. 支持工业标准SCPI命令集的GPIB和USB接口使得自动测试解决方案更为便利.
TSL-550采用了外部谐振器，既满足90 dB / 0.1 nm或更高的*信噪比，又满足+10 dBm或更高的高输出。具备微调控制和相干控制等功能，是进行精que特性评估的*的工具。通过组合
多端口功率计MPM系列，偏振控制器PCU-100和软件，可以进行光学特性评估（IL，WDL，PDL）。有关光学表征系统的更多信息，请参见扫描测试系统。
特性
大光输出：+13 dBm
高信噪比：90 dB / 0.1 nm
高波长精度：-类型
A：标准型号±20
pm-类型C：高精度型号±5 pm
1260-1680 nm的宽带波长范围
-O波段1260至1360 nm
--ES波段1355至1485 nm
--SCL波段1480至1630 nm
--CL波段1500至1630 nm
--U波段1560至1680 nm
日本santec实现高光输出的可变波长光源TSL-550
运用
光学组件，模块评估-
波长选择开关（WSS），AWG，波长阻挡器
-DWDM组件
光子器件/微腔谐振器评估
The TSL-550 is a high performance tunable laser with a wide tuning range and an output combining high power and high signal-to-noise ratio. The mod-hop-free tuning TSL-550 is equipped with features such as fine tuning and coherence control making it a must have tool for precision optical testing. Santec has used an innovative cavity design to lower the optical ASE noise, resulting in an extraordinarily high signal-to-noise ratio of over 90dB/0.1nm, while also maintaining a high output power of over +10dBm. GPIB and USB interfaces with the industry standard SCPI command set provide a convenient automated measurement solution.
The TSL-550 has two separate versions: Type A includes a wavelength meter with ±20pm wavelength accuracy and Type C, the high accuracy version, with an absolute wavelength accuracy of ±5pm.
The TSL-550 is ideal for next generation components testing driven by innovations in Dense Wavelength Division Multiplexing (DWDM), passives and Wavelength Selective Switches (WSS) that require characterization of multi-input, high extinction ratio devices. The TSL-550 is designed to improve production inspection throughput by doubling the scan repetition rate over conventional lasers. In addition, the TSL-550 is available for WDL and PDL measurement with the support of our power meter, MPM-200 and dedicated software
